open-falcon部署

一、Open-Falcon介绍

open-falcon是一款用golang和python写的监控系统，由小米启动这个项目。

1、监控系统，可以从运营级别（基本配置即可），以及应用级别（二次开发，通过端口进行日志上报），对服务器、操作系统、中间件、应用进行全面的监控，及报警，对我们的系统正常运行的作用非常重要。

2、基础监控
CPU、Load、内存、磁盘、IO、网络相关、内核参数、ss 统计输出、端口采集、核心服务的进程存活信息采集、关键业务进程资源消耗、NTP offset采集、DNS解析采集，这些指标，都是open-falcon的agent组件直接支持的。
对于这些基础监控选项全部理解透彻的时刻，也就是对Linux运行原理及命令进阶的时刻。

3、第三方监控
术业有专攻，运行在OS上的应用甚多，Open-Falcon的开发团队不可能把所有的第三方应用的监控全部做完，这个就需要开源社区提供更多的插件，当前对于很多常用的第三方应用都有相关插件了。

4、JVM监控
对于Java作为主要开发语言的大多数公司，对于JVM的监控不可或缺。
每个JVM应用的参数，比如GC、类加载、JVM内存、进程、线程，都可以上报给Falcon，而这些参数的获得，都可以通过MxBeans实现。

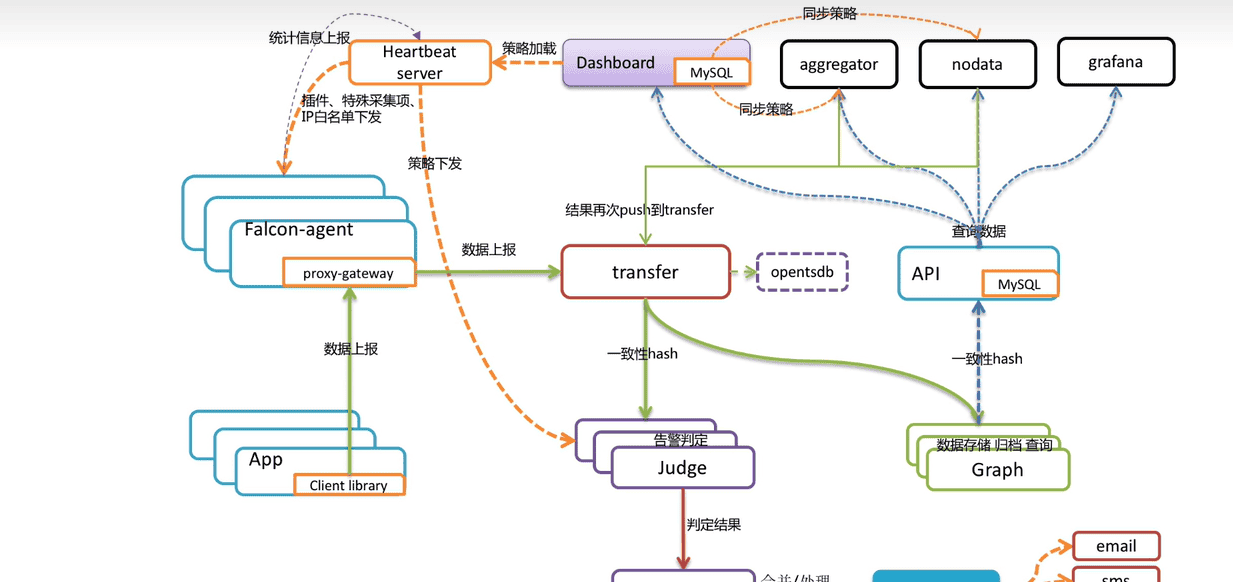

二、open-falcon 架构图

图片[1] - open-falcon部署 - 鹿快

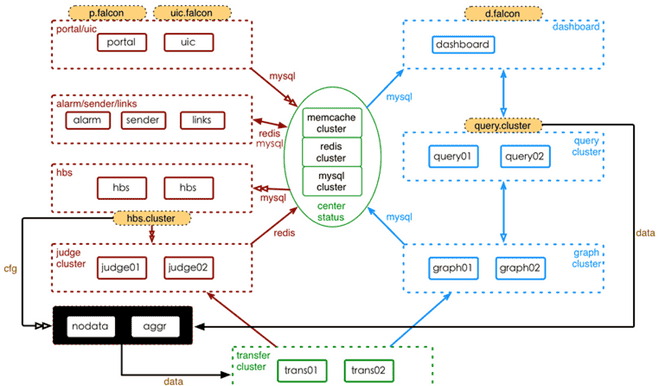

基础组件以绿色标注圈住、作图链路组件以蓝色圈住、报警链路组件以红色圈住，橙色填充的组件为域名。OpenTSDB功能尚未完成

三、open-falocn的组件介绍

agent
agent用于采集机器负载监控指标，比如cpu.idle、load.1min、disk.io.util等等，每隔60秒push给Transfer。agent与Transfer建立了长连接，数据发送速度比较快，agent提供了一个http口/v1/push用于接收用户手工push的一些数据，然后通过长连接迅速转发给Transfer。

hbs(Heartbeat Server)
心跳服务器，公司所有agent都会连到HBS，每分钟发一次心跳请求。agent会定期从hbs中拉取配置，比如：需要运行plugins的目录；judge模块也会定期从hbs去获取告警策略；

transfer
transfer是数据转发服务。它接收agent上报的数据，然后按照哈希规则进行数据分片、并将分片后的数据分别push给graph&judge等组件。

judge
Judge用于告警判断，agent将数据push给Transfer，Transfer不但会转发给Graph组件来绘图，还会转发给Judge用于判断是否触发告警。
Judge监听了一个http端口，提供了一个http接口：/count，访问之，可以得悉当前Judge实例处理了多少数据量。

graph
graph是存储绘图数据的组件。graph组件接收transfer组件推送上来的监控数据，同时处理query组件的查询请求、返回绘图数据。

gateway
站在client端的角度，gateway和transfer提供了完全一致的功能和接口。只有遇到网络分区的情况时，才有必要使用gateway组件。

alarm
alarm模块是处理报警event的，judge产生的报警event写入redis，alarm从redis读取处理;

aggregator
集群聚合模块。聚合某集群下的所有机器的某个指标的值，提供一种集群视角的监控体验。

nodata
nodata用于检测监控数据的上报异常。nodata和实时报警judge模块协同工作，过程为: 配置了nodata的采集项超时未上报数据，nodata生成一条默认的模拟数据；用户配置相应的报警策略，收到mock数据就产生报警。采集项上报异常检测，作为judge模块的一个必要补充，能够使judge的实时报警功能更加可靠、完善。

四、open-falcon各个实例通信网络端口

端口名称	默认端口	说明
httpd	3000	监听的网络端口
netcat	44444	netcat端口
dashboard	8081	dashboard前端web端口
api	8080	后端API端口
push_api	1988	后端API端口
redis	6379	redis-server端口

五、安装

5.1 环境准备

5.1.1 前置准备


#系统环境
[root@192 ~]# cat /etc/redhat-release
CentOS Linux release 7.9.2009 (Core)

#安装下载软件
yum install wget -y

#更换aliyun源
mv /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.backup
wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo

#下载epel源
yum install epel-release.noarch -y
rpm -Uvh http://mirrors.aliyun.com/epel/epel-release-latest-7.noarch.rpm
yum clean all
yum makecache

#下载常用软件
yum install git telnet net-tools tree nmap sysstat lrzsz dos2unix tcpdump ntpdate -y

#配置时间同步
ntpdate cn.pool.ntp.org

#更改主机名
hostnamectl set-hostname open-falcon-server
hostname open-falcon-server

#开启缓存
sed -i 's#keepcache=0#keepcache=1#g' /etc/yum.conf
grep keepcache /etc/yum.conf

#关闭selinux
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
setenforce 0

#关闭防火墙
systemctl stop firewalld.service
systemctl disable firewalld.service

5.1.2 安装redis


#安装 redis
yum install redis -y

#redis常用命令

redis-server           redis 服务端

redis-cli　　　　       redis 命令行客户端

redis-benchmark        redis 性能测试工具

redis-check-aof 　     AOF文件修复工具

redis-check-dump       RDB文件修复工具

redis-sentinel 　　    Sentinel 服务端

#启动redis
[root@open-falcon-server ~]# redis-server &
[1] 1662
[root@open-falcon-server ~]# 1662:C 27 Jul 14:44:56.463 # Warning: no config file specified, using the default config. In order to specify a config file use redis-server /path/to/redis.conf
1662:M 27 Jul 14:44:56.464 * Increased maximum number of open files to 10032 (it was originally set to 1024).
                _._
           _.-``__ ''-._
      _.-``    `.  `_.  ''-._           Redis 3.2.10 (00000000/0) 64 bit
  .-`` .-```.  ```/    _.,_ ''-._
 (    '      ,       .-`  | `,    )     Running in standalone mode
 |`-._`-...-` __...-.``-._|'` _.-'|     Port: 6379
 |    `-._   `._    /     _.-'    |     PID: 1662
  `-._    `-._  `-./  _.-'    _.-'
 |`-._`-._    `-.__.-'    _.-'_.-'|
 |    `-._`-._        _.-'_.-'    |           http://redis.io
  `-._    `-._`-.__.-'_.-'    _.-'
 |`-._`-._    `-.__.-'    _.-'_.-'|
 |    `-._`-._        _.-'_.-'    |
  `-._    `-._`-.__.-'_.-'    _.-'
      `-._    `-.__.-'    _.-'
          `-._        _.-'
              `-.__.-'

1662:M 27 Jul 14:44:56.464 # WARNING: The TCP backlog setting of 511 cannot be enforced because /proc/sys/net/core/somaxconn is set to the lower value of 128.
1662:M 27 Jul 14:44:56.464 # Server started, Redis version 3.2.10
1662:M 27 Jul 14:44:56.464 # WARNING overcommit_memory is set to 0! Background save may fail under low memory condition. To fix this issue add 'vm.overcommit_memory = 1' to /etc/sysctl.conf and then reboot or run the command 'sysctl vm.overcommit_memory=1' for this to take effect.
1662:M 27 Jul 14:44:56.464 # WARNING you have Transparent Huge Pages (THP) support enabled in your kernel. This will create latency and memory usage issues with Redis. To fix this issue run the command 'echo never > /sys/kernel/mm/transparent_hugepage/enabled' as root, and add it to your /etc/rc.local in order to retain the setting after a reboot. Redis must be restarted after THP is disabled.
1662:M 27 Jul 14:44:56.464 * The server is now ready to accept connections on port 6379

5.1.3mysql 安装


#安装mysql
yum install mariadb mariadb-server -y

#启动mysql
systemctl start mariadb
systemctl enable mariadb

#登录数据库测试
[root@open-falcon-server ~]# mysql -uroot -p
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or g.
Your MariaDB connection id is 4
Server version: 5.5.56-MariaDB MariaDB Server

Copyright (c) 2000, 2017, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.

MariaDB [(none)]> exit
Bye

#检查服务
[root@open-falcon-server ~]# netstat -lntp|egrep "3306|6379"
tcp        0      0 0.0.0.0:3306            0.0.0.0:*               LISTEN      1978/mysqld
tcp        0      0 0.0.0.0:6379            0.0.0.0:*               LISTEN      1662/redis-server *
tcp6       0      0 :::6379                 :::*                    LISTEN      1662/redis-server *

#初始化MySQL表结构
cd /tmp/ && git clone https://github.com/open-falcon/falcon-plus.git
cd /tmp/falcon-plus/scripts/mysql/db_schema/
mysql -h 127.0.0.1 -u root -p < 1_uic-db-schema.sql
mysql -h 127.0.0.1 -u root -p < 2_portal-db-schema.sql
mysql -h 127.0.0.1 -u root -p < 3_dashboard-db-schema.sql
mysql -h 127.0.0.1 -u root -p < 4_graph-db-schema.sql
mysql -h 127.0.0.1 -u root -p < 5_alarms-db-schema.sql
rm -rf /tmp/falcon-plus/

#设置数据库密码
mysqladmin -uroot password "123456"

#检查导入的数据库
[root@open-falcon-server ~]# mysql -uroot -p
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or g.
Your MariaDB connection id is 11
Server version: 5.5.56-MariaDB MariaDB Server

Copyright (c) 2000, 2017, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.

MariaDB [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| alarms             |
| dashboard          |
| falcon_portal      |
| graph              |
| mysql              |
| performance_schema |
| test               |
| uic                |
+--------------------+
9 rows in set (0.00 sec)

MariaDB [(none)]> exit
Bye

5.1.4 Go安装


#安装go语言开发包
yum install golang -y

#检查版本
[root@open-falcon-server ~]# go version
go version go1.9.4 linux/amd64

#查看Go安装路径
[root@open-falcon-server ~]# find / -name go
/etc/alternatives/go
/var/lib/alternatives/go
/usr/bin/go
/usr/lib/golang/src/cmd/go   #需要这个路径
/usr/lib/golang/src/go
/usr/lib/golang/bin/go
/usr/lib/golang/pkg/linux_amd64/cmd/go
/usr/lib/golang/pkg/linux_amd64/go

5.2 Open-Falcon后端


#创建工作目录
export FALCON_HOME=/home/work
export WORKSPACE=$FALCON_HOME/open-falcon
mkdir -p $WORKSPACE

#下载解压二进制包
wget https://github.com/open-falcon/falcon-plus/releases/download/v0.2.1/open-falcon-v0.2.1.tar.gz
tar xf open-falcon-v0.2.1.tar.gz -C $WORKSPACE

#查看解压结果
[root@open-falcon-server ~]# cd $WORKSPACE
[root@open-falcon-server open-falcon]# ll
总用量 3896
drwxrwxr-x 7 501 501      67 8月  15 2017 agent
drwxrwxr-x 5 501 501      40 8月  15 2017 aggregator
drwxrwxr-x 5 501 501      40 8月  15 2017 alarm
drwxrwxr-x 6 501 501      51 8月  15 2017 api
drwxrwxr-x 5 501 501      40 8月  15 2017 gateway
drwxrwxr-x 6 501 501      51 8月  15 2017 graph
drwxrwxr-x 5 501 501      40 8月  15 2017 hbs
drwxrwxr-x 5 501 501      40 8月  15 2017 judge
drwxrwxr-x 5 501 501      40 8月  15 2017 nodata
-rwxrwxr-x 1 501 501 3987469 8月  15 2017 open-falcon
lrwxrwxrwx 1 501 501      16 8月  15 2017 plugins -> ./agent/plugins/
lrwxrwxrwx 1 501 501      15 8月  15 2017 public -> ./agent/public/
drwxrwxr-x 5 501 501      40 8月  15 2017 transfer


#修改配置文件
sed -i 's#root:@tcp(127.0.0.1:3306)#root:123456@tcp(127.0.0.1:3306)#g' `find ./ -type f -name "cfg.json"|egrep "alarm|api|nodata|hbs|graph|aggregator"`
cat `find ./ -type f -name "cfg.json"|egrep "alarm|api|nodata|hbs|graph|aggregator"` |grep 'root:123456@tcp(127.0.0.1:3306)'

#启动后端模块
[root@open-falcon-server open-falcon]# cd /home/work/open-falcon
[root@open-falcon-server open-falcon]# ./open-falcon start
[falcon-graph] 5583
[falcon-hbs] 5592
[falcon-judge] 5600
[falcon-transfer] 5606
[falcon-nodata] 5613
[falcon-aggregator] 5620
[falcon-agent] 5628
[falcon-gateway] 5635
[falcon-api] 5641
[falcon-alarm] 5653

#检查服务启动状态
[root@open-falcon-server open-falcon]# ./open-falcon check
        falcon-graph         UP            5583
          falcon-hbs         UP            5592
        falcon-judge         UP            5600
     falcon-transfer         UP            5606
       falcon-nodata         UP            5613
   falcon-aggregator         UP            5620
        falcon-agent         UP            5628
      falcon-gateway         UP            5635
          falcon-api         UP            5641
        falcon-alarm         UP            5653

#更多命令行工具用法
# ./open-falcon [start|stop|restart|check|monitor|reload] module
./open-falcon start agent

./open-falcon check
        falcon-graph         UP           53007
          falcon-hbs         UP           53014
        falcon-judge         UP           53020
     falcon-transfer         UP           53026
       falcon-nodata         UP           53032
   falcon-aggregator         UP           53038
        falcon-agent         UP           53044
      falcon-gateway         UP           53050
          falcon-api         UP           53056
        falcon-alarm         UP           53063

#For debugging , You can check $WorkDir/$moduleName/log/logs/xxx.log
至此后端部署完成。

#其他用法
重载配置（备注：修改vi cfg.json配置文件后，可以用下面命令重载配置）

curl 127.0.0.1:1988/config/reload

Open-Falcon前端


#创建工作目录
export HOME=/home/work
export WORKSPACE=$HOME/open-falcon
mkdir -p $WORKSPACE
cd $WORKSPACE

#克隆前端组件代码
git clone https://github.com/open-falcon/dashboard.git

#安装依赖包
yum install -y python-virtualenv
yum install -y python-devel
yum install -y openldap-devel
yum install -y mysql-devel
yum groupinstall "Development tools" -y

#下载ez_setup.py
cd ~
wget --no-check-certificate https://bootstrap.pypa.io/ez_setup.py
python ez_setup.py --insecure

#下载安装pip
wget https://pypi.python.org/packages/11/b6/abcb525026a4be042b486df43905d6893fb04f05aac21c32c638e939e447/pip-9.0.1.tar.gz#md5=35f01da33009719497f01a4ba69d63c9
tar xf pip-9.0.1.tar.gz
cd pip-9.0.1
python setup.py install

#解决pip安装慢
mkdir -p ~/.pip
echo '[global]' >>~/.pip/pip.conf
echo 'index-url = https://pypi.tuna.tsinghua.edu.cn/simple' >>~/.pip/pip.conf
#测试是否可用
[root@open-falcon-server ~]# cd /home/work/open-falcon/dashboard
[root@open-falcon-server dashboard]# pip -V
pip 9.0.1 from /usr/lib/python2.7/site-packages/pip-9.0.1-py2.7.egg (python 2.7)
[root@open-falcon-server dashboard]# pip

Usage:
  pip <command> [options]

Commands:
  install                     Install packages.
  download                    Download packages.
  uninstall                   Uninstall packages.
  freeze                      Output installed packages in requirements format.
  list                        List installed packages.
  show                        Show information about installed packages.
  check                       Verify installed packages have compatible dependencies.
  search                      Search PyPI for packages.
  wheel                       Build wheels from your requirements.
  hash                        Compute hashes of package archives.
  completion                  A helper command used for command completion.
  help                        Show help for commands.

General Options:
  -h, --help                  Show help.
  --isolated                  Run pip in an isolated mode, ignoring environment variables and user configuration.
  -v, --verbose               Give more output. Option is additive, and can be used up to 3 times.
  -V, --version               Show version and exit.
  -q, --quiet                 Give less output. Option is additive, and can be used up to 3 times (corresponding to WARNING, ERROR, and CRITICAL logging levels).
  --log <path>                Path to a verbose appending log.
  --proxy <proxy>             Specify a proxy in the form [user:passwd@]proxy.server:port.
  --retries <retries>         Maximum number of retries each connection should attempt (default 5 times).
  --timeout <sec>             Set the socket timeout (default 15 seconds).
  --exists-action <action>    Default action when a path already exists: (s)witch, (i)gnore, (w)ipe, (b)ackup, (a)bort.
  --trusted-host <hostname>   Mark this host as trusted, even though it does not have valid or any HTTPS.
  --cert <path>               Path to alternate CA bundle.
  --client-cert <path>        Path to SSL client certificate, a single file containing the private key and the certificate in PEM format.
  --cache-dir <dir>           Store the cache data in <dir>.
  --no-cache-dir              Disable the cache.
  --disable-pip-version-check
                              Don't periodically check PyPI to determine whether a new version of pip is available for download. Implied with --no-index.
#查看需要安装模块
[root@open-falcon-server dashboard]# cat pip_requirements.txt
Flask==0.10.1
Flask-Babel==0.9
Jinja2==2.7.2
Werkzeug==0.9.4
gunicorn==19.5.0
python-dateutil==2.2
requests==2.3.0
mysql-python
python-ldap
#安装模块
pip install -r pip_requirements.txt
#修改配置文件
配置说明：
dashboard的配置文件为： 'rrd/config.py'，根据实际情况修改：
# API_ADDR 表示后端api组件的地址
API_ADDR = "http://127.0.0.1:8080/api/v1"

# 根据实际情况，修改PORTAL_DB_*, 默认用户名为root，默认密码为""
# 根据实际情况，修改ALARM_DB_*, 默认用户名为root，默认密码为""
配置修改：
cp rrd/config.py{,.bak}
vim rrd/config.py
修改内容：
# Falcon+ API
API_ADDR = os.environ.get("API_ADDR","http://192.168.88.216:8080/api/v1")
# portal database
# TODO: read from api instead of db
PORTAL_DB_HOST = os.environ.get("PORTAL_DB_HOST","192.168.88.216")
PORTAL_DB_PORT = int(os.environ.get("PORTAL_DB_PORT",3306))
PORTAL_DB_USER = os.environ.get("PORTAL_DB_USER","root")
PORTAL_DB_PASS = os.environ.get("PORTAL_DB_PASS","123456")
PORTAL_DB_NAME = os.environ.get("PORTAL_DB_NAME","falcon_portal")
# alarm database
# TODO: read from api instead of db
ALARM_DB_HOST = os.environ.get("ALARM_DB_HOST","192.168.88.216")
ALARM_DB_PORT = int(os.environ.get("ALARM_DB_PORT",3306))
ALARM_DB_USER = os.environ.get("ALARM_DB_USER","root")
ALARM_DB_PASS = os.environ.get("ALARM_DB_PASS","123456")
ALARM_DB_NAME = os.environ.get("ALARM_DB_NAME","alarms")
#启动服务
[root@open-falcon-server dashboard]# virtualenv ./env
New python executable in /home/work/open-falcon/dashboard/env/bin/python
Installing setuptools, pip, wheel...done.
[root@open-falcon-server dashboard]# source env/bin/activate
(env) [root@open-falcon-server dashboard]# ./control start
falcon-dashboard started..., pid=20814
(env) [root@open-falcon-server dashboard]# ./control tail
[2018-07-27 16:37:02 +0000] [20814] [INFO] Starting gunicorn 19.5.0
[2018-07-27 16:37:02 +0000] [20814] [INFO] Listening at: http://0.0.0.0:8081 (20814)
[2018-07-27 16:37:02 +0000] [20814] [INFO] Using worker: sync
[2018-07-27 16:37:02 +0000] [20819] [INFO] Booting worker with pid: 20819
[2018-07-27 16:37:02 +0000] [20820] [INFO] Booting worker with pid: 20820
[2018-07-27 16:37:02 +0000] [20821] [INFO] Booting worker with pid: 20821
[2018-07-27 16:37:02 +0000] [20826] [INFO] Booting worker with pid: 20826
^C
(env) [root@open-falcon-server dashboard]# deactivate

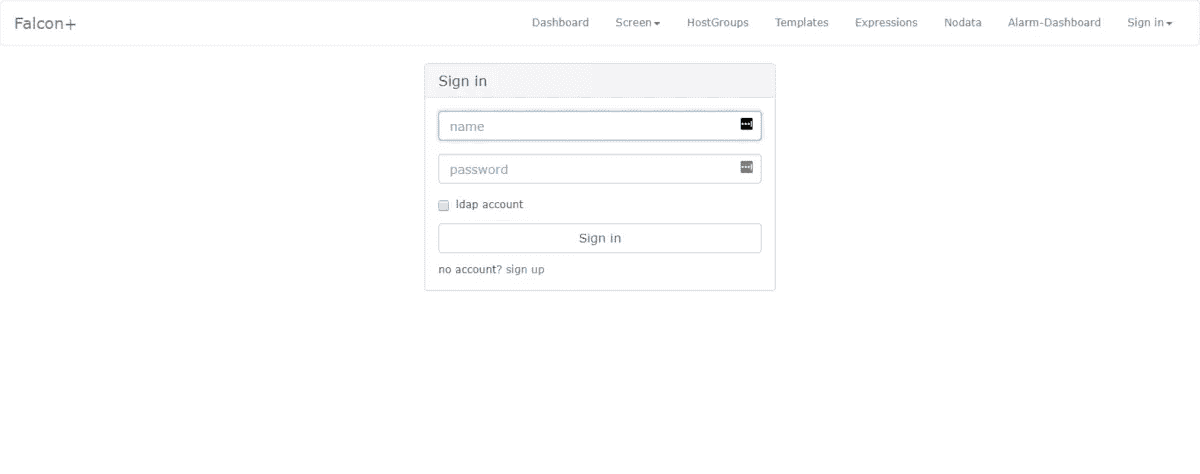

六、访问网址

http://192.168.88.216:8081
图片[2] - open-falcon部署 - 鹿快
#dashbord用户管理
dashbord没有默认创建任何账号包括管理账号，需要你通过页面进行注册账号。
想拥有管理全局的超级管理员账号，需要手动注册用户名为root的账号（第一个帐号名称为root的用户会被自动设置为超级管理员）。
超级管理员可以给普通用户分配权限管理。

小提示：注册账号能够被任何打开dashboard页面的人注册，所以当给相关的人注册完账号后，需要去关闭注册账号功能。只需要去修改api组件的配置文件cfg.json，将signup_disable配置项修改为true，重启api即可。当需要给人开账号的时候，再将配置选项改回去，用完再关掉即可。

open-falcon 客户端


#服务端操作
[root@open-falcon-server ~]# cd /home/work/open-falcon
[root@open-falcon-server open-falcon]# scp -r agent root@192.168.88.216:/home/
[root@open-falcon-server open-falcon]# scp -r open-falcon root@192.168.88.216:/home/

#客户端操作
[root@open-falcon-client ~]# mkdir -p /home/work/open-falcon
[root@open-falcon-client ~]# mkdir -p /home/work/open-falcon
[root@open-falcon-client ~]# mv /home/open-falcon /home/agent /home/work/open-falcon
[root@open-falcon-client ~]# cd /home/work/open-falcon
[root@open-falcon-client open-falcon]# vim agent/config/cfg.json

修改内容：

{
    "debug": true,  # 控制一些debug信息的输出，生产环境通常设置为false
    "hostname": "", # agent采集了数据发给transfer，endpoint就设置为了hostname，默认通过`hostname`获取，如果配置中配置了hostname，就用配置中的
    "ip": "", # agent与hbs心跳的时候会把自己的ip地址发给hbs，agent会自动探测本机ip，如果不想让agent自动探测，可以手工修改该配置
    "plugin": {
        "enabled": false, # 默认不开启插件机制
        "dir": "./plugin",  # 把放置插件脚本的git repo clone到这个目录
        "git": "https://github.com/open-falcon/plugin.git", # 放置插件脚本的git repo地址
        "logs": "./logs" # 插件执行的log，如果插件执行有问题，可以去这个目录看log
    },
    "heartbeat": {
        "enabled": true,  # 此处enabled要设置为true
        "addr": "10.0.0.100:6030", # hbs的地址，端口是hbs的rpc端口
        "interval": 60, # 心跳周期，单位是秒
        "timeout": 1000 # 连接hbs的超时时间，单位是毫秒
    },
    "transfer": {
        "enabled": true,
        "addrs": [
            "10.0.0.100:18433"
        ],  # transfer的地址，端口是transfer的rpc端口, 可以支持写多个transfer的地址，agent会保证HA
        "interval": 60, # 采集周期，单位是秒，即agent一分钟采集一次数据发给transfer
        "timeout": 1000 # 连接transfer的超时时间，单位是毫秒
    },
    "http": {
        "enabled": true,  # 是否要监听http端口
        "listen": ":1988",
        "backdoor": false
    },
    "collector": {
        "ifacePrefix": ["eth", "em"], # 默认配置只会采集网卡名称前缀是eth、em的网卡流量，配置为空就会采集所有的，lo的也会采集。可以从/proc/net/dev看到各个网卡的流量信息
        "mountPoint": []
    },
    "default_tags": {
    },
    "ignore": {  # 默认采集了200多个metric，可以通过ignore设置为不采集
        "cpu.busy": true,
        "df.bytes.free": true,
        "df.bytes.total": true,
        "df.bytes.used": true,
        "df.bytes.used.percent": true,
        "df.inodes.total": true,
        "df.inodes.free": true,
        "df.inodes.used": true,
        "df.inodes.used.percent": true,
        "mem.memtotal": true,
        "mem.memused": true,
        "mem.memused.percent": true,
        "mem.memfree": true,
        "mem.swaptotal": true,
        "mem.swapused": true,
        "mem.swapfree": true
    }
}

#启动服务
./open-falcon start agent  启动进程
./open-falcon stop agent  停止进程
./open-falcon monitor agent  查看日志

看var目录下的log是否正常，或者浏览器访问其1988端口。另外agent提供了一个--check参数，可以检查agent是否可以正常跑在当前机器上

cd /home/work/open-falcon/agent/bin/
./falcon-agent --check

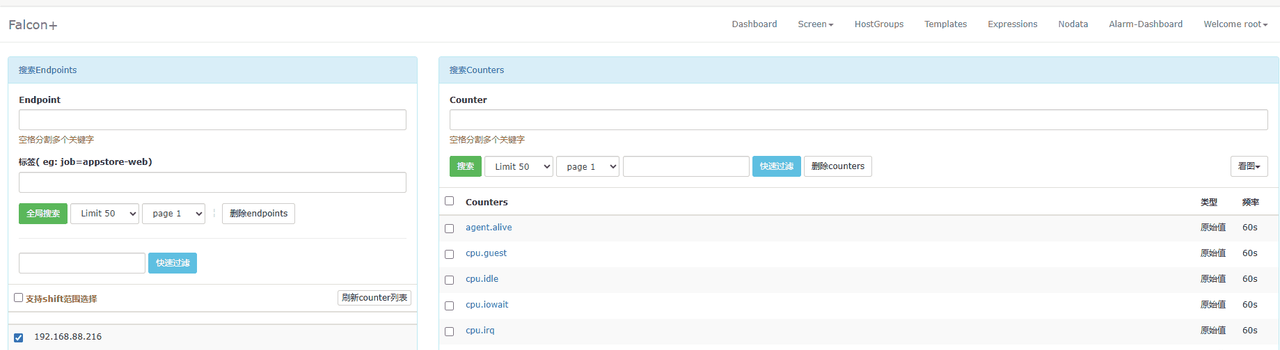

进入监控页面

八、参考文档

open-falcon安装包地址：https://github.com/open-falcon/falcon-plus

Open-Falcon编写的整个脑洞历程：
http://mp.weixin.qq.com/s__biz=MjM5OTcxMzE0MQ==&mid=400225178&idx=1&sn=c98609a9b66f84549e41cd421b4df74d

运维监控系统之Open-Falcon：https://blog.csdn.net/Richardlygo/article/details/102894828
Open-falcon技术实践V1.0：https://blog.csdn.net/qq_37067752/article/details/107809522

文章版权归作者所有，未经允许请勿转载。如内容涉嫌侵权，请在本页底部进入<联系我们>进行举报投诉!

THE END
