利用hybrid接口做根据mac地址分配vlan演示

今天分享一个在工作中常常遇到特殊组网需求在(列如：WLAN组网中常常遇到)，

mac-vlan根据每台主机的mac地址来分配划分vlan，相当于是对每台主机的mac地址进行vlan划分。

mac-vlan的优点在于，将mac地址与vlan绑定，绑定后该mac地址对应的设备可以随意切换端口，mac地址对应的vlan不会改变。

mac-vlan能够实现灵活的接入控制。列如在大的会议厅办公但是要求本部门的员工只能连接本部门的vlan上网办公，这就需要用到hybrid接口。

华为交换默认hybrid接口，这个接口比较特殊，hybrid端口可以允许多个VLAN的数据帧通过，可以接收和发送多个vlan的数据帧，一般用于交换机之间的连接（也可以用于终端接入）。

hybrid对接收不带tag标签的报文出处理方式：

打上缺省的VLAN ID，当缺省VLAN ID 在允许通过的VLAN ID列表里时，接收该报文。

打上缺省的VLAN ID，当缺省VLAN ID不在允许通过的VILAN ID列表里时，丢弃该报文。

hybrid对接收带tag标签的报文出处理方式：

当VLAN ID在接口允许通过的VLAN ID列表里时，接收该报文。

当VLAN ID不在接口允许通过的VLAN ID列表里时，接收该报文。

当VLAN ID是该接口允许通过的VLAN ID时，发送该报文,可以通过命令设置发送时是否携带Tag标签。

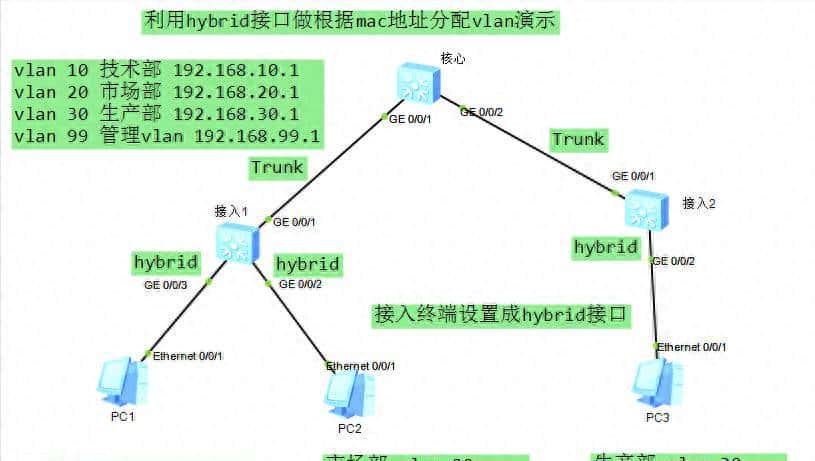

演示拓扑图

核心交换机配置

#

sysname HX

#

vlan batch 10 20 30 99

#

dhcp enable

#

vlan 10

mac-vlan mac-address 5489-982d-6f0b priority 0

vlan 20

mac-vlan mac-address 5489-980c-40c9 priority 0

vlan 30

mac-vlan mac-address 5489-9888-304d priority 0

#

ip pool jishubu

gateway-list 192.168.10.1

network 192.168.10.0 mask 255.255.255.0

dns-list 8.8.8.8

#

ip pool shengchanbu

gateway-list 192.168.30.1

network 192.168.30.0 mask 255.255.255.0

dns-list 8.8.8.8

#

ip pool shichangbu

gateway-list 192.168.20.1

network 192.168.20.0 mask 255.255.255.0

dns-list 8.8.8.8

#

interface Vlanif10

ip address 192.168.10.1 255.255.255.0

dhcp select global

#

interface Vlanif20

ip address 192.168.20.1 255.255.255.0

dhcp select global

#

interface Vlanif30

ip address 192.168.30.1 255.255.255.0

dhcp select global

#

interface Vlanif99

ip address 192.168.99.1 255.255.255.0

#

interface GigabitEthernet0/0/1

port link-type trunk

undo port trunk allow-pass vlan 1

port trunk allow-pass vlan 10 20 30 99

mac-vlan enable

#

interface GigabitEthernet0/0/2

port link-type trunk

port trunk allow-pass vlan 10 20 30 99

mac-vlan enable

#

接入交换1 配置

#

sysname jr1

#

vlan batch 10 20 30 99

#

interface Vlanif99

ip address 192.168.99.2 255.255.255.0

#

interface GigabitEthernet0/0/1

port link-type trunk

port trunk allow-pass vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/2

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/3

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

接入交换机2 配置

#

sysname jr2

#

vlan batch 10 20 30 99

#

interface Vlanif99

ip address 192.168.99.3 255.255.255.0

#

iterface GigabitEthernet0/0/1

port link-type trunk

port trunk allow-pass vlan 10 20 30 99

mac-vlan enable

#

interface GigabitEthernet0/0/2

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/3

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/4

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/5

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/6

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/7

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/8

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/9

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/10

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/11

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/12

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/13

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/14

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/15

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/16

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/17

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/18

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/19

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

interface GigabitEthernet0/0/20

port hybrid untagged vlan 10 20 30

mac-vlan enable

#

测试在三个部门的终端pc可以在交换机1和交换机2上切换使用他们的vlan

不会变。
